Back# How to create a route finder on an SVG map

Dec 8, 2022

Pasha Volkov

In one of our recent projects, we had an interesting case: the whole application was built around an interactive map for a fairly large shopping mall, and the main goal of the system was to plot the closest route to a user-selected destination. What makes it more interesting is that the map itself was designed by our partners, so we had to interact with a design agency and process updates on the fly.

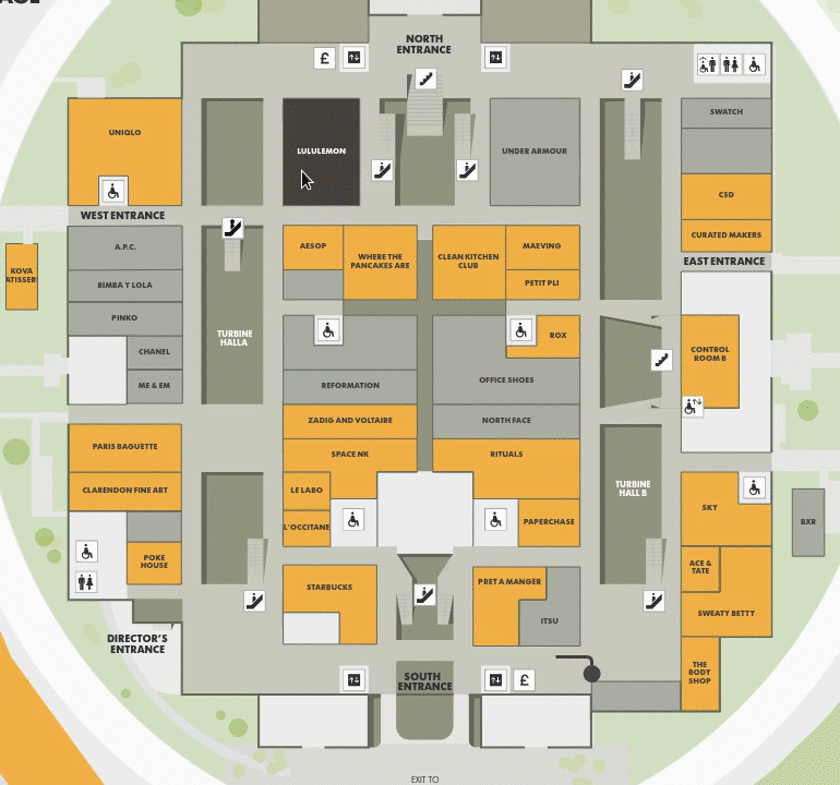

But as they say, a picture is worth a thousand words:

Obviously, to solve such a task, one can use the graph and all this mankind’s legacy related to pathfinding solutions. But the problem is that it is very difficult to use svg files as they are and convert them to graph-like entities. Although there are libraries that allow you to find path between arbitrary points on svg, and the result will look something like this:

Not very impressive, right? And there is also a problem with wall/hall markers, and I'm not even saying that it will be a separate pain after each update to divide svg files prepared by the customer into cells. And I get frustrated before I start thinking about performance with this approach.

Fortunately, it is not the only one. After some research and discussions with map authors, we decided to draw all possible routes in the building, but use them only to build graph nodes, and not to display them in the UI. So, the map with displayed routes looks like this:

Enough said, let's finally look at the code.

`types.ts`

```
export type RouteElement =
| Element
| SVGLineElement
export type RoutePoint = {
x: number
y: number
id: string
distance: number
previous?: RoutePoint
links: RouteLink[]
}
export type RouteLink = {
to: RoutePoint
distance: number
}
```

We use line coordinates to create `RoutePoint`

- graph node. Two per line, as they represent graph edge.

`graph.ts`

```
/**
* Build graph with given routes element
* Get svg points and use coordinates to create graph points
* @param {Element} routes - route lines container
* @returns {RoutePoint[]} - graph points
*/
export function getGraph(
routes: Element,
points: RoutePoint[] = [],
options = graphOptions
): RoutePoint[] {
const children: RouteElement[] = Array.from(routes.children)
children.forEach(function (route) {
if (isLine(route)) {
handleLine(route, points, options)
} else {
console.error(`Invalid element in routes: ${route.tagName}`)
}
})
return points
}
function isLine(route: RouteElement): route is SVGLineElement {
return route.tagName === 'line'
}
function handleLine(
route: SVGLineElement,
points: RoutePoint[]
): void {
const id = route.id
const pointA = addPoint(
route.x1.baseVal.value,
route.y1.baseVal.value,
id,
points
)
const pointB = addPoint(
route.x2.baseVal.value,
route.y2.baseVal.value,
id,
points
)
const distance = getDistance(pointA, pointB)
linkPoint(pointA, pointB, distance)
linkPoint(pointB, pointA, distance)
}
function getDistance(a: RoutePoint, b: RoutePoint): number {
return Math.sqrt(Math.pow(a.x - b.x, 2) + Math.pow(a.y - b.y, 2))
}
```

However, we have a comprehensive docstring, let's try to understand what is happening with the processing of these lines. Let's imagine we have an svg with a group of routes like this:

`map.svg`

```
...
<g id="routes">
<line x1="752.9" y1="295.5" x2="787.3" y2="295.5"/>
<line x1="810.2" y1="295.5" x2="787.3" y2="295.5"/>
<line x1="810.2" y1="295.5" x2="832.9" y2="295.5"/>
<line x1="565.8" y1="819.5" x2="565.8" y2="754.5"/>
<line id="point-from" x1="360.8" y1="293.5" x2="360.8" y2="284.4"/>
<line id="point-to" x1="576.8" y1="273.5" x2="576.8" y2="248"/>
</g>
...
```

What happens if we call our `getGraph`

function with these routes as a parameter:

```
const routes = document.querySelector('#routes')
if (routes !== null) {
graph = getGraph(routes, graph, options.graph)
}
```

First, we get an array of child elements (lines) of the routes. Then iterate over each element and check if it is a valid svg line element and get its coordinates to pass to the `addPoint`

function, then calculate the distance and link those points together using `linkPoint`

. Let's now look at these functions.

Here we are going to fill the graph with points coming from our svg lines:

`graph.ts`

```
export function addPoint(
x: number,
y: number,
id: string,
points: RoutePoint[],
): RoutePoint {
const foundPoint = findPoint(points, x, y)
if (foundPoint) return foundPoint
const point = {
x,
y,
id,
distance: Number.POSITIVE_INFINITY,
previous: undefined,
links: [],
}
points.push(point)
return point
}
export function linkPoint(
pointA: RoutePoint,
pointB: RoutePoint,
distance: number
): void {
const linkPoints = pointA.links.map((link) => link.to)
if (!findPoint(linkPoints, pointB.x, pointB.y)) {
pointA.links.push({ to: pointB, distance })
}
}
export function findPoint(
points: RoutePoint[],
x: number,
y: number
): RoutePoint {
return points.find((point) => point.x === x && point.y === y)
}
```

Simple. We only check if there is already a point with exactly the same coordinates and simply put it into the array of points.

**Warning:** we're mutating the `points `

argument inside `addPoint`

, but in this particular case that's ok, since we're doing it inside the `getGraph`

scope, where we create it with an empty value.

From now on, we have a graph, and now we need to find the path between the desired locations. Let's do that.

`graph.ts`

```
/**
* Find closest path between from/to locations in given graph points
* It looks from/to points by provided Id
* Return empty array in case there is no from/to points or path
* @param {RoutePoint[]} points - graph points
* @param {string} from - location from id
* @param {string} to - location to id
* @returns {RoutePoint[]} - path points
*/
export function getPath(
points: RoutePoint[],
from: string,
to: string,
options = pathOptions
): RoutePoint[] {
const pointPrefix = options.pointIdPrefix
const pointsFrom = filterPointsByLocationId(points, from, pointPrefix)
const pointsTo = filterPointsByLocationId(points, to, pointPrefix)
if (!pointsFrom.length || !pointsTo.length) return []
clearPath(points)
pointsFrom.forEach((pointFrom) => pointFrom.distance = 0)
setPathPoints(points)
return getPathPoints(pointsTo)
}
export function clearPath(points: RoutePoint[]): void {
for (const point of points) {
point.previous = undefined
point.distance = Number.POSITIVE_INFINITY
}
}
export function setPathPoints(points: RoutePoint[]): void {
const pointsQ = [...points]
while (pointsQ.length > 0) {
let qIndex = 0
let minDistance = Number.POSITIVE_INFINITY
for (let index = 0; index < pointsQ.length; index++) {
if (pointsQ[index].distance < minDistance) {
qIndex = index
minDistance = pointsQ[index].distance
}
}
const point = pointsQ[qIndex]
pointsQ.splice(qIndex, 1)
for (const link of point.links) {
const alt = point.distance + link.distance
if (alt < link.to.distance) {
link.to.distance = alt
link.to.previous = point
}
}
}
}
export function getPathPoints(pointsTo: RoutePoint[]): RoutePoint[] {
const path = []
let target = null
let min = Number.POSITIVE_INFINITY
for (const pointTo of pointsTo) {
if (pointTo.distance < min) {
target = pointTo
min = target.distance
}
}
if (!target) return []
path.push(target)
while (target.previous !== undefined) {
target = target.previous
path.unshift(target)
}
return path
}
```

It's definitely not the most elegant way to find a path in a graph, but it has one undeniable advantage: it's simple. This means that it can be easily maintained and updated if the logic needs to change.

We define an empty `path`

array and filter points that match by id with the `from/to`

arguments. `clearPath`

resets point’s `previous`

and `distance`

attributes to default values among all graph points. This is necessary so that there are no side effects from the previous pathfinding attempt.

For all (normally just one) `pointsFrom`

we set `distance = 0`

to indicate that we start pathfinding from there.

Inside `setPathPoints`

we create a shallow copy of all graph points and iterate over them to find a starting point. We slice it out of from `pointsQ`

and process its links inside another nested loop. Here we calculate the total distance from the start of the path and set that point as the previous one with the distance updated.

Next, within `getPathPoints`

we create an empty path array and loop through `pointsTo`

. If any of them (again, normally the only one) has a distance different from `POSITIVE_INFINITY`

we set that as the path's target.

Finally we loop over `previous`

point attribute and construct path array one by one.

We’ve done!

Now it’s time to draw a founded route.

`types.ts`

```
export type DrawOptions = {
mapSelector: string
className: string
smoothing: number
lineColor: string
lineWidth: string
speed: number
}
```

constants.ts

```
export const drawOptions = {
mapSelector: "#map",
className: "route-path",
smoothing: 5,
lineColor: "rgb(242,0,0)",
lineWidth: "2",
speed: 3
}
```

draw.ts

```
/**
* Draw route for given graph path
* Add svg path element after map selector
* @param {RoutePoint[]} path - graph path contains of route points
* @param {DrawOptions} options - drawing options. has default value
*/
export function drawPath(
path: RoutePoint[],
options: DrawOptions = drawOptions
): void {
removePath(options.className)
const map = document.querySelector(options.mapSelector)
if (map === null) return
const svgPath = createPath()
svgPath.setAttribute('class', options.className)
svgPath.setAttribute('fill', 'none')
svgPath.setAttribute('stroke', options.lineColor)
svgPath.setAttribute('stroke-width', options.lineWidth)
svgPath.setAttribute('d', getD(path, options.smoothing))
map.after(svgPath)
const distance = getPathDistance(path)
const offset = distance / 100 / options.speed
setStyle(svgPath, offset)
}
/**
* Remove elements with given class name from DOM
* @param {string} className - path class
*/
export function removePath(className: string): void {
document.querySelectorAll(`.${className}`).forEach((path) => path.remove())
}
/**
* Calculates relative distance for given path
* @param {RoutePoint[]} path - path to get distance
* @returns {number} - distance between last and first points of path
*/
export function getPathDistance(path: RoutePoint[]): number {
const first = path[0]
const last = path[path.length - 1]
return last.distance - first.distance
}
function createPath(): SVGPathElement {
return document.createElementNS('http://www.w3.org/2000/svg', 'path')
}
```

So, `drawPath`

is pretty straightforward: we create svg `path`

element and set its attributes with the values passed in `options`

argument. What is interesting here is that `d`

attribute, let’s look at it.

`draw.ts`

```
function getD(path: RoutePoint[], smoothing: number): string {
let d = `M ${path[0].x},${path[0].y}`
path.forEach((point, index) => {
if (index > 0 && index < path.length - 1) {
const prevPoint = getLinePoint(path[index], path[index - 1], smoothing)
const nextPoint = getLinePoint(path[index], path[index + 1], smoothing)
d += ` L${prevPoint.x},${prevPoint.y}`
d += ` Q${point.x},${point.y}`
d += ` ${nextPoint.x},${nextPoint.y}`
} else {
d += ` L${point.x},${point.y}`
}
})
return d
}
function getLinePoint(
pointA: RoutePoint,
pointB: RoutePoint,
smoothing: number
): { x: number; y: number } {
const xLen = pointB.x - pointA.x
const yLen = pointB.y - pointA.y
const len = Math.abs(pointA.distance - pointB.distance)
const size = Math.min(smoothing, len / 2)
const r = size / len
return {
x: pointA.x + xLen * r,
y: pointA.y + yLen * r,
}
}
```

For me, who has never had a chance to work with svg, this was the hardest part, so I had to take an empirical approach and do some experimentation to get this working.

In any case, what we're doing here is starting by setting `M`

with the coordinates of the first point in the path. Then iterate over the rest path points and kinda transform it back from an array of objects into a line. But since we're using a `path`

element this time, we had to handle its coordinates internally. In short, we set `L`

and `Q`

of the previous and next points except for the last point in a path. In `getLinePoint`

we calculate the coordinates of point that consider line smoothing. For the last point, we only set `L`

parameter with point coordinates. As result, we got `d`

attribute ready to be inserted into the page document with `map.after(svgPath)`

But let’s add some animation then.

`draw.ts`

```
function setStyle(svgPath: SVGPathElement, offset: number): void {
const length = svgPath.getTotalLength()
const transition = `stroke-dashoffset ${offset}s ease-in-out 0.4s`
svgPath.style.strokeDasharray = `${length} ${length}`
svgPath.style.strokeDashoffset = length.toString()
svgPath.getBoundingClientRect()
svgPath.style.transition = transition
svgPath.style.strokeDashoffset = '0'
}
```

So we’ve calculated the offset above and set `strokeDasharray`

and` strokeDashoffset`

attributes. Now we can set transition and our route will draw nice and smooth. Yey!

I’ve prepared a code sandbox demo with full source code available, so you can play and see all the above in action.

However, at first glance, the problem that we got here seemed almost unsolvable, we used an integrated approach and solved it from two sides: visual and programmatic. The result makes it easy to change existing functionality and apply it to any similar tasks. For our project, we added support for multi-floor maps and the search for accessible routes for users with disabilities. We’ve also created a wrapper component for Vue to alleviate using this code inside the application. But this article already seems too detailed and thorough to cover all the use cases we had.

Obviously, there is a lot of space for improvements. For example, the pathfinding algorithm can be refactored to avoid mutating the initial graph.

But it seems that what we have done here is a good example of how navigation and route finding can look at the code level, with a more or less general approach.

Stay tuned

More thoughts
